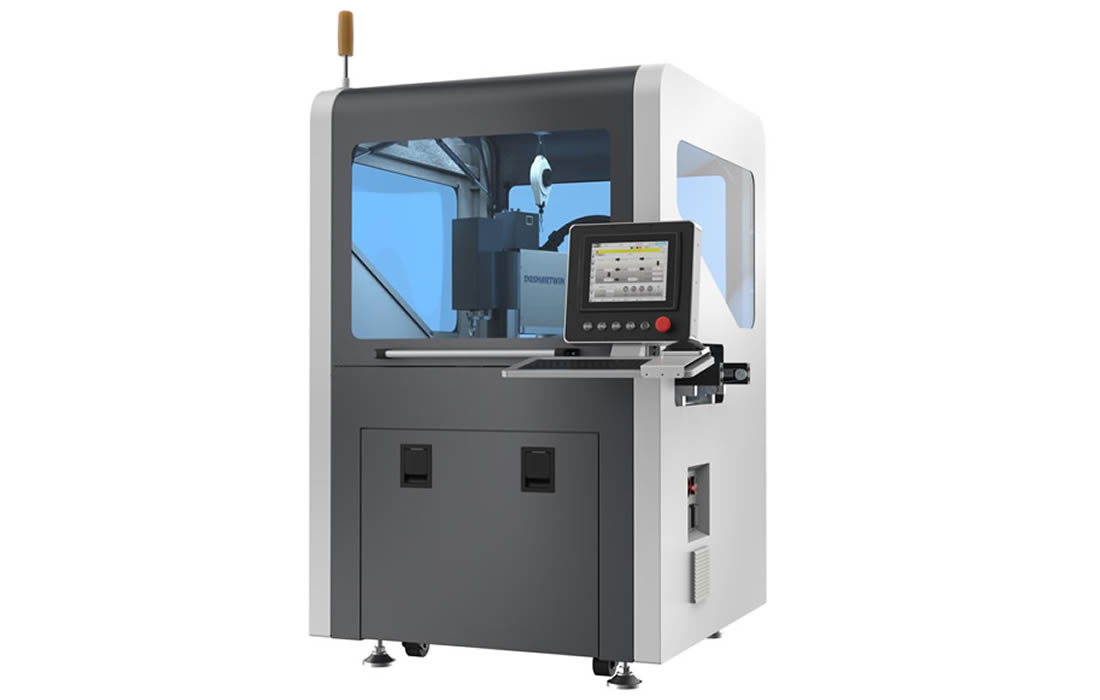

ASD-600i is an inline screw driving system, it is equipped with 3 axis SCARA robot, servo screw driving system the intellight control system which can help you realize full automatic screw driving and monitor screw tightening torque in real time.
● ASD-600i adopt modular design, can be easliy intergrated into production line help you realize full screw driving automation.
● Standard equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.

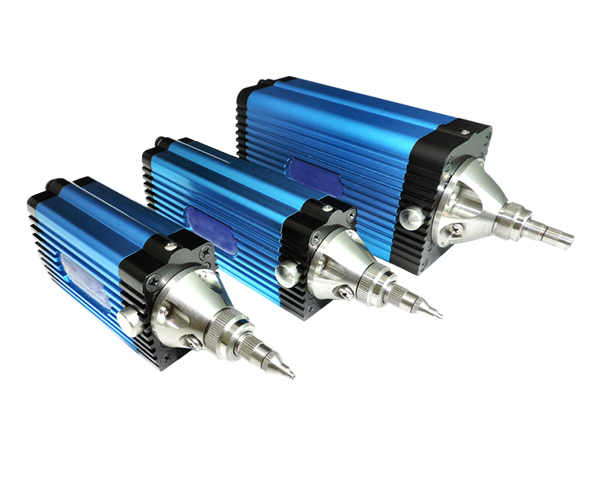

● ASD-600i is equipped with servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque.

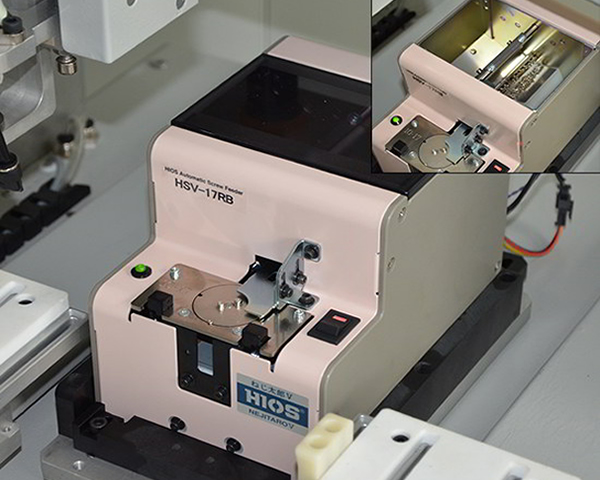

● High quality screw feeding system ensure stable screw feeding.
● Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy.
● Intelligent detection function, can detect abnormal conditions such as missing lock, loose, floating height, etc.
● Windows based software, easy to operate.
Specification
Model
ASD-600i
Motion system
3 axis Scara robot, reach: 600mm
Screw driver
servo motor screw driver * 1 set, monitor tightenging torque in real time.
Screw feeder
Suck type screw feeder * 1set
Suitable screw size
M1-M4, customized
Repeat positioning accuracy
±0.05mm
Z axis travel distance
100mm
Screw drving efficiency
approx 2s/pcs
Control system
Windows OS based Self developed control system
Fault detection
missing, loose, and floating detection.
Conveyor
Conveying height : 920±30mm, left to right.
Machine power
Max 2.5KW
Machine voltage
AC 220V/50HZ, 1P
Machine dimensions

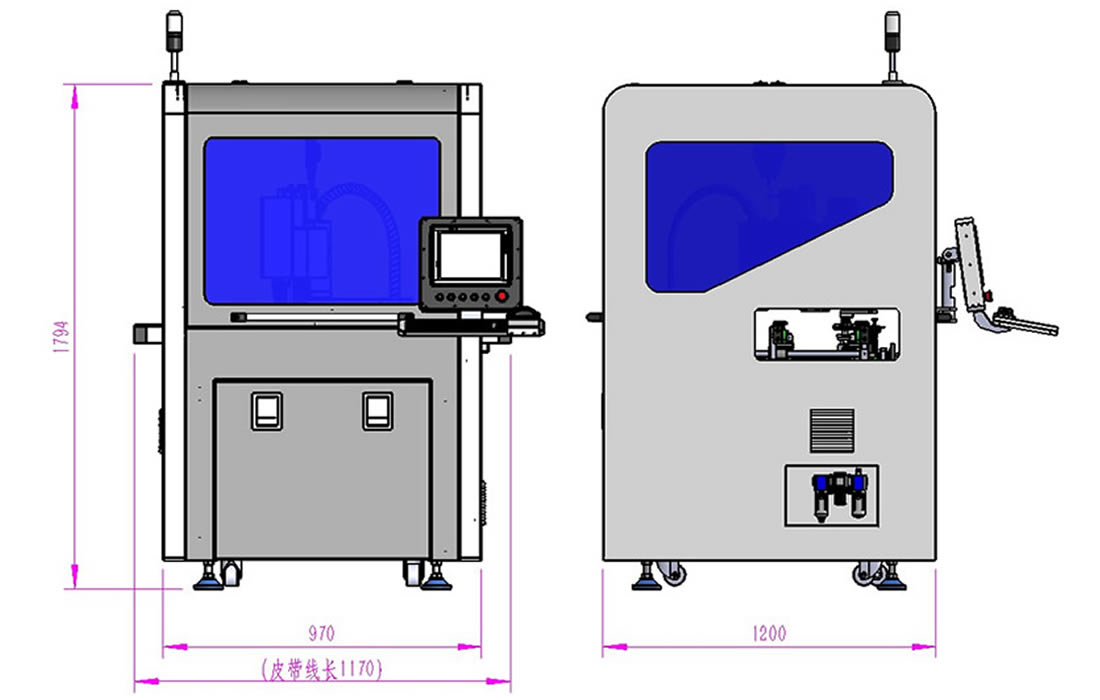

Approx 1170*1200*1800mm (not including display and light tower)
What options are available ?

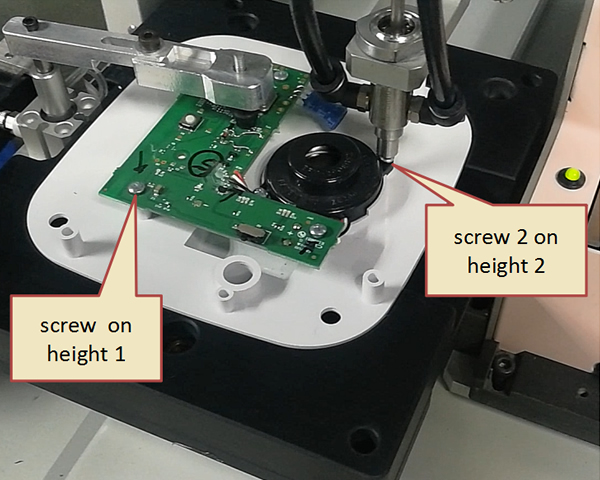

Additional small Z axis (SY-S12/SY-S22)

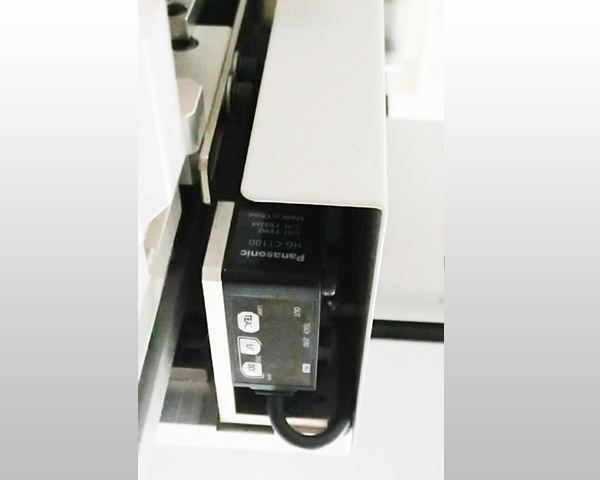

Screw floating height detecting system (SY-S12/SY-S22)
