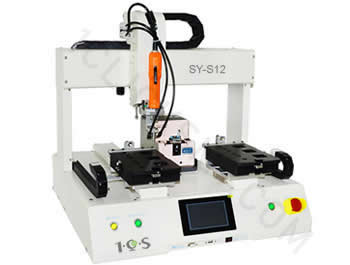

Single Head With Double Platform Screw Driving Machine SY-S12 Series
Single Head With Double Platform Screw Driving Machine SY-S12 Series :suitable for drive 1 kind of screw on 1 or 2 kind of products on double platform , SY-S12 series has 3 type of platform size which meet requirement of different products size.

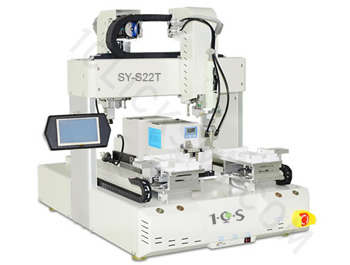

Double Head With Double Platform Screw Driving Machine SY-S22T
Double Head With Double Platform Screw Driving Machine SY-S22T: suitable for drive 2 kind of screw on 1 or 2 kind of products on double platform , customized platform size is available.

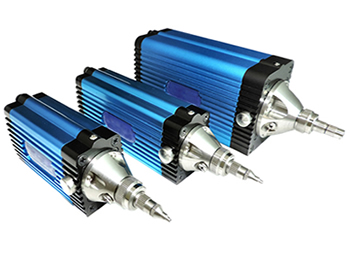

Intelligent screw driver
Intelligent servo control screw driver is available : Precise torque control ±5% current equivalent value.
Intelligent screw driver with PC control, capable to trace each screw tightening process in real time. Programmable screw tightening process.

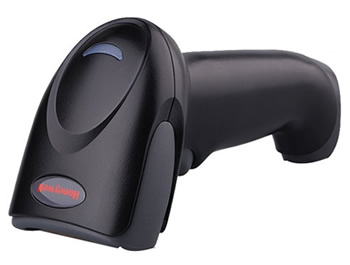

Barcode scanner to read barcode of product before tightening screws.

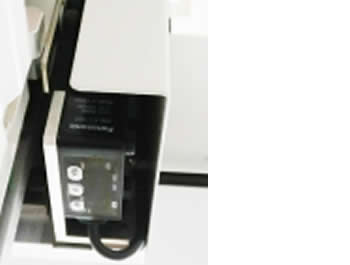

Screw floating height detecting function
Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend.
There is another defective of screw locking, screw is tightend and torque reachs the set value, but the screw is not been driven to the bottom.
1CS screw driving machine has an optional screw floating detecting fuction, which can detect the height of screw tightened with height detecting sensor to avoid this issue.

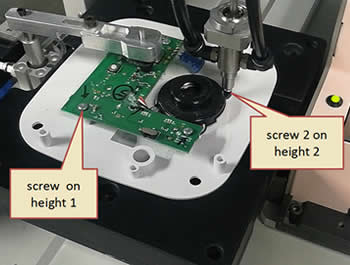

Additional small Z axis
SY-S12T/L/M Series with additional small z axis is capable to drive screws on different plane height.
Normally, the conventional screw driving machine only has 1 Z axis which only control the driving height of tip but can not control the nozzle height. the screw fastening process is : nozzle stop at the fixed height 3mm above the product and then Z axis control tip to drive screws at programmed height. so it requires all the screws on the product must be at the same height . If the products need to drive screws on different height , so the conventional machine is not able to do it.
1CS screw driving machine can add another Z axis on the driving head which can control the nozzle height ,so it can solve the problem when products need to fasten screw on different height.
How to get proposal and quotation
Reccive customer's inquiry
Customer fill in inquiry form to confirm requirement
Evaluate preliminary proposal and price
Customer accept preliminary proposal and price
Customer provide product and screw sample to confirm proposal and price
Confirm final proposal , customer place order
Customer fill in inquiry form do not accept preliminary proposal and price
Revise proposal according to customer’s requirement
