Features

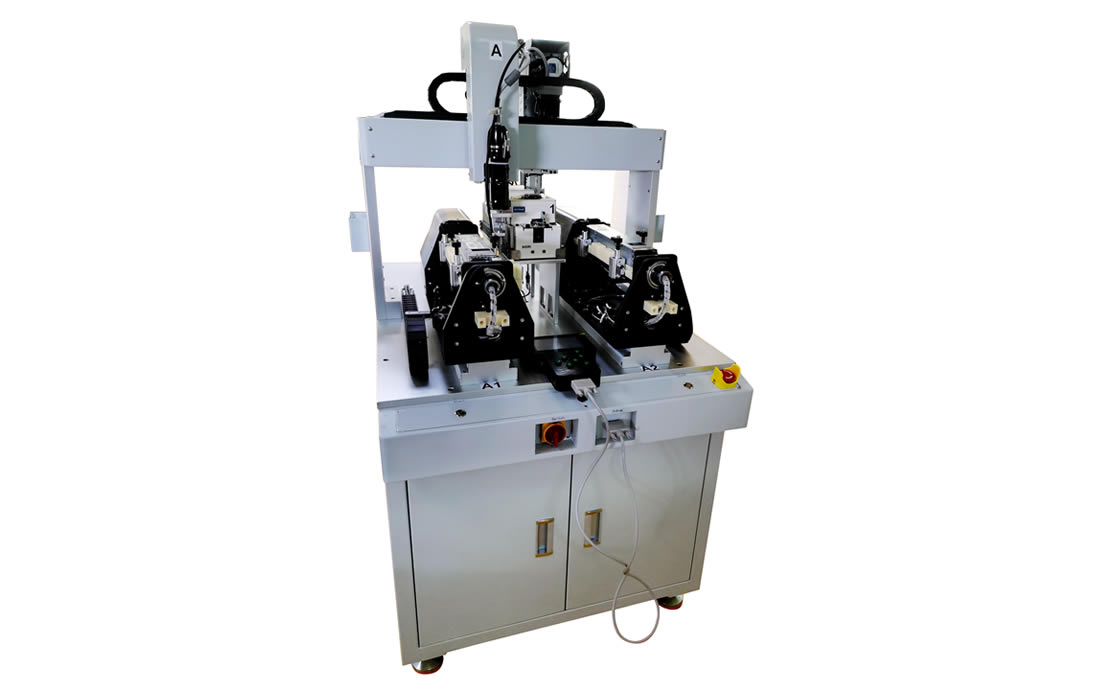

● SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production. The double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking.

● High quality 6 axis(X1/X2/Y1/Y2/Z1/Z2) step motor control +2 pcs (R1/R2) 360-degree rotating platforms controlled by servo motor and servo drive ensure machine run stably.

● PLC and touch screen control system with full english interface, easy to operate.

● Equipped with high quality Japan made HIOS screw driver and Quicher screw feeder.

● Customized fixture is available to variety of products.

● Support placing products on the front side of machine and taking out on back side of machine.

● Screw missing detection and loose screw detection are standard configuration.

● Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend.
