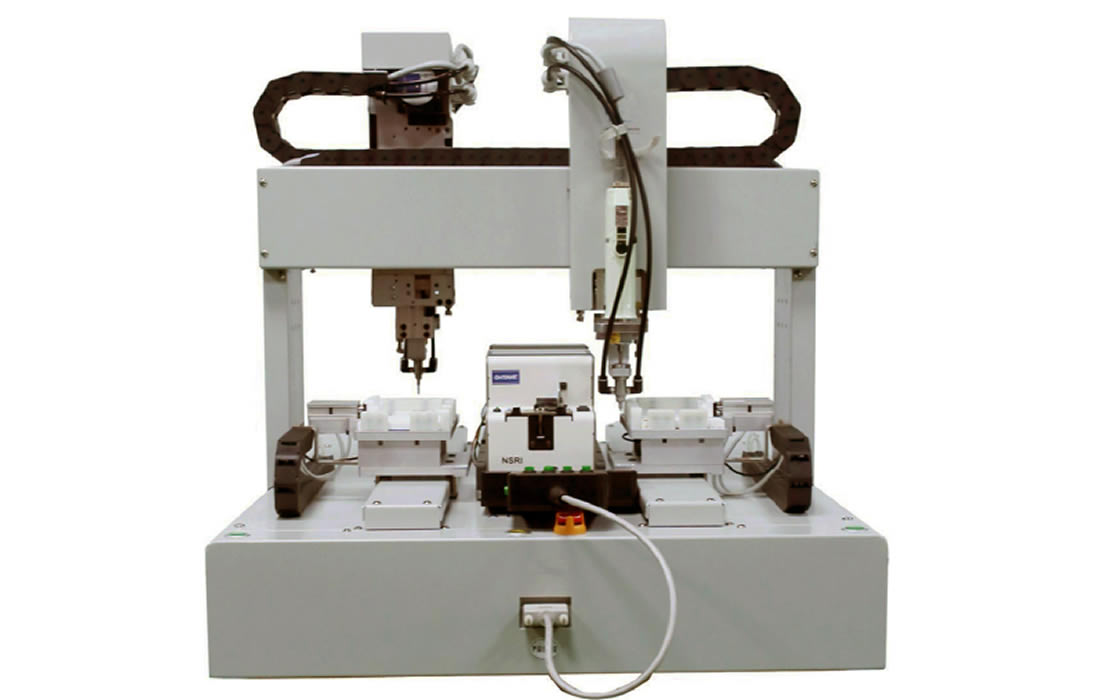

1CLICKSMT Automatic Screw Driving Machine SY-S22T

Features

● SY-S22T combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production.

● High quality 6 axis(X1/X2/Y1/Y2/Z1/Z2) robot with step motor control ensures machine run stably.

● PLC and touch screen control system with full english interface, easy to operate.

● Equipped with high quality Japan made HIOS screw driver and screw feeder (optional).

● Customized fixture is available to variety of products.

● Support placing products on the front side of machine and taking out on back side of machine.

● Screw missing detection and loose screw detection are standard configuration.

● Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend.

Specification

Model	SY-S12T	SY-S22T
Screw driving head quantity	1	2
Work table quantity	2	2
Work table size(mm)	W120mmD200mmH60	W120mmD200mmH60
Drive system	X/Y/Z axis step motor control	X/Y/Z axis step motor control
Positioning Repeatability	±0.05mm	±0.05mm
Screw picking method	vaccum picking	vaccum picking
Screw driving speed	max 1.5 pcs /sec	max 1.5 pcs /sec
Power	300W	400W
Power Supply	1P, AC110V/220V, 50/60 Hz	1P, AC110V/220V, 50/60 Hz
Machine size(mm)	W550mmD650mmH650mm	W650mmD930mmH700mm
Weight	60KG	100KG
air pressure requirement	0.4-0.7Mpa	0.4-0.7Mpa
Specification of screws for standard Quicher screw feeder	One type of screw from M1.0 to M3.0 (Others can be customized)	One type of screw from M1.0 to M3.0 (Others can be customized)
Applicable Screw Length(under head)	Up to 20mm	Up to 20mm
Standard HIOS screw driver	Standard Torque is 1~5kgf.cm (0.1~0.5N.M). Others can be customized	Standard Torque is 1~5kgf.cm (0.1~0.5N.M). Others can be customized
